360°
Range
5 µm
Repeatability
1 kg*
Max. Payload
225 mm
Reach

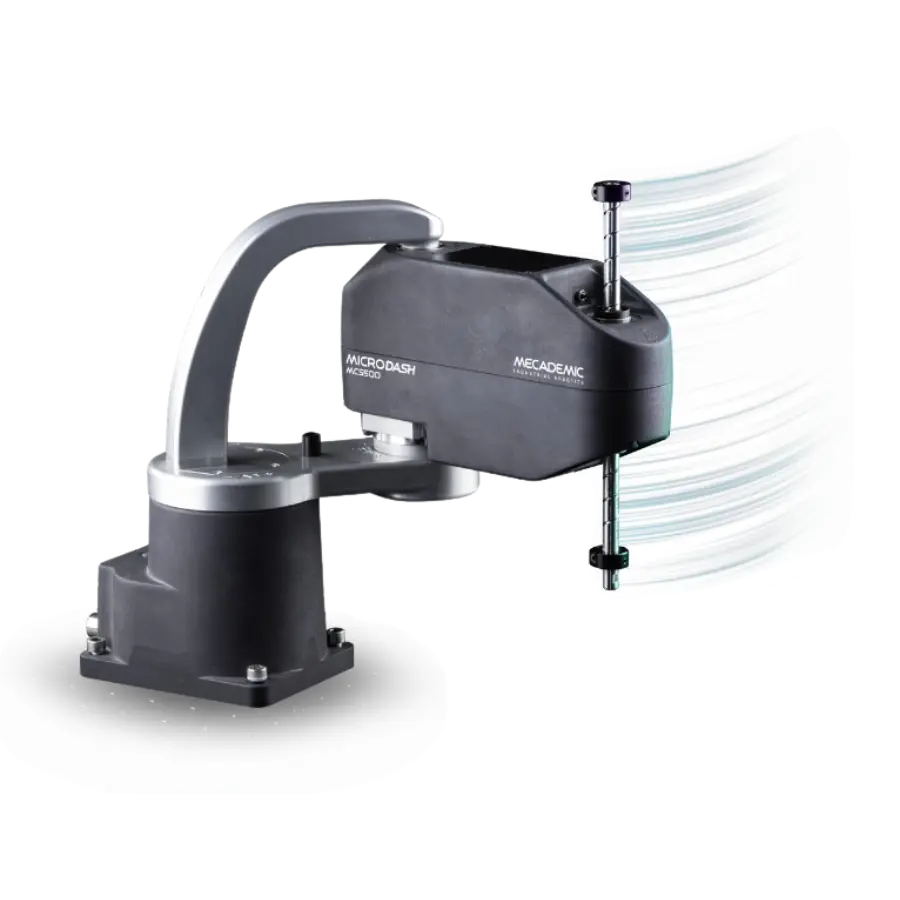

MCS500 SCARA Robot
Built for easy integration, Mecademic's new SCARA robot provides top efficiency and precision at an economical price point. With fast cycle times and flexible mounting options, the SCARA robot is ideal for applications like pick-and-place, assembly, lab automation, and more.
This SCARA robot is unique in offering a blend of simplicity, accuracy, and high performance at a much lower cost than other models on the market.
Key Features
Highly Precise
0.005 mm position repeatability
Ultra-Compact
The controller is embedded into the base
Easy to Integrate
Hardware- and software-agnostic
Smart Vacuum Kit
Powerful, easy-to-integrate vacuum and I/O module (optional)
Fast Speeds
Fast Cycle Time @ 0.42 s
Robust Build
Precision machined aluminum
Minimum Tolerance
The MCS500 is crafted with the same design philosophy as the Meca500, the world’s most precise and compact industrial six-axis robot.
Mecademic’s SCARA robot offers an unmatched repeatability of 5μm — smaller than the size of a red blood cell. In addition, the SCARA also offers a resolution of 1μm
Minimize Footprint
The MCS500 is the smallest four-axis robot arm available on the market. With its built-in controller, it offers an exceptionally compact design, making it ideal for applications where space is extremely limited.
0.42 Second Cycle Time*
Achieving speeds of over 2,200 mm/s, the MCS500 SCARA robot’s high-performance design delivers faster cycle times and optimal throughput.
* When moving twice 100 mm horizontally, and four times 25 mm vertically with a load of 0.5 kg

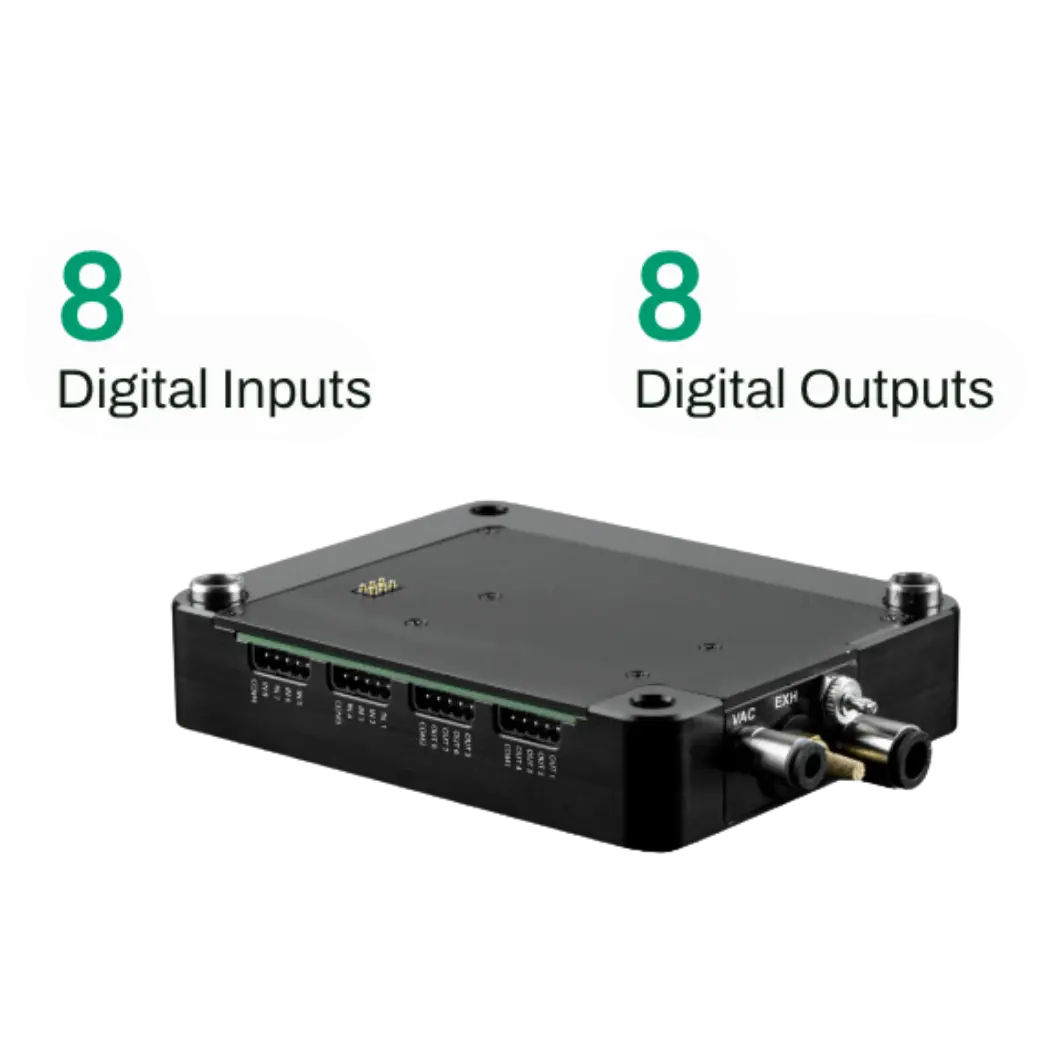

Integrated Controls
The vacuum and I/O controls are built directly into the robot controller, featuring dedicated I/O commands to simplify integration.
Built-in Vacuum Ejector
This integrated module generates vacuum for suction cups.
Programmable Vacuum Sensing Switch
This switch monitors the part’s holding status, enhancing reliability in your operations.
ATVS
The ATV/UTV Offroad Vehicle Industry cannot risk defective units leaving their manufacturing facilities. That’s why they rely on LeakMaster as a top resource for leak testing instrumentation and automated leak testing machinery.
From engines to coolant systems, LeakMaster provides solutions capable of identifying these defects before each vehicle is shipped.
Automated Material Removal
Automating the material removal process with robotic technology can yield a business the following benefits:
- Alleviate Physical Strain on Workers:
- Improve Quality and Consistency
- Increase Efficiency and Throughput
- Lower Overhead Costs
- Quick Deployment and Reliable Output
Our systems are designed for quick deployment and consistent output for your process
Automated Assembly
Automating an assembly process with robotic technology can yield a business the following benefits:
- Eliminate ergonomic strain on employees performing monotonous, repetitive assembly tasks.
- Enhance quality control and consistency of assembled products.
- Speed up the assembly line, increasing throughput and capacity.
- Reduce overhead costs, contributing to a more profitable production line.
Our systems are designed for quick deployment and consistent output for your process
Automated Material Removal
Automating an assembly process with robotic technology can yield a business the following benefits:
- Eliminate ergonomic strain on employees performing dull, repetitive operations with hand tools
- Mitigate employee health risks from particle emissions (e.g. abrasive dust or chips)
- More consistent quality of the workpiece final product
- Reduction of workpiece processing time and increasing machining capacity
Our systems and testing labs allow for a clear line of site into what your automated process would look like in regards to feasibility, cycle time, tooling needs, and return on investment.
Automated Material Removal
Automating an assembly process with robotic technology can yield a business the following benefits:
- Eliminate ergonomic strain on employees performing dull, repetitive operations with hand tools
- Mitigate employee health risks from particle emissions (e.g. abrasive dust or chips)
- More consistent quality of the workpiece final product
- Reduction of workpiece processing time and increasing machining capacity
Our systems and testing labs allow for a clear line of site into what your automated process would look like in regards to feasibility, cycle time, tooling needs, and return on investment.
On-Site Testing and Application Reviews
By bringing our leading automation solutions to your door and utilizing our team of expert engineers, we're able to not only show you the solutions firsthand, but are also able to test the solutions on your specific process.
Typically taking less than an hour from arriving to packing up, our engineers are able to give your team hands-on experience with the technology and provide real-time solutions to your process.
Feasibility Studies & Proof of Concepts
Implementing automation into your plant can come with a great deal of challenges and concerns. At the end of the day, it's an investment that is made with the end goal of increasing profitability and efficiency. Like any investment, it often comes with risks.
So, how do companies minimize this risk when diving into automation projects? The answer lies in a feasibility study.
Compatibility
Seamless Software Integration
