Asyril Eye+




What is Eye+

EYE+ consists of a compact controller, a high-resolution camera and a calibration plate.

This plug and play system running on the easy to use EYE+ Studio web based interface that requires no in-depth knowledge of machine vision to run your flexible pick and place application.

EYE+ Studio also makes it easy to configure the vision, perform hand-eye calibration, change recipes and program new parts.

How it Works

Using the configuration wizard, EYE+ Studio set up in 3 easy steps:

  • Vision configuration

  • Create a new recipe

  • Hand-eye calibration

During production, EYE+ controls all the different components of the application (Asycube, hopper, vision and robot).

1. Switch on the hopper to feed the Asycube

2. Manage the right vibrations of Asycube

3. Detect correctly oriented parts

4. Pick parts from platform by robot.

Odoo • Text and Image
Odoo • Image and Text

Easy to use:  No previous experience of machine vision required to setup and use EYE+ resulting in faster installation and lower setup costs.

Intuitive recipe creation and configuration:  User friendly interface, with step-by-step instructions and explanations, makes the software easy to follow. Have a complete new system with calibrated robot and vision setup within minutes.

Plug and play:  Designed to easily integrate with any size of Asycube and any industrial robot for hassle free set-up. Installation, mounting and setup can be quickly performed without any prior experience.

All included: Simply accessible via a web browser, no software download or additional licensing required. No 3rd party software or hardware required for a complete system.

Attractive:  Highly competitive system costs compared to traditional solutions.

Compatible with any PLC & industrial robot brand:  Command prompts are sent through TCP/IP so EYE+ is compatible with any robot brand giving pick point location for any part.

Features

All in-one kit : Controller, camera, optics, calibration plate, power cable

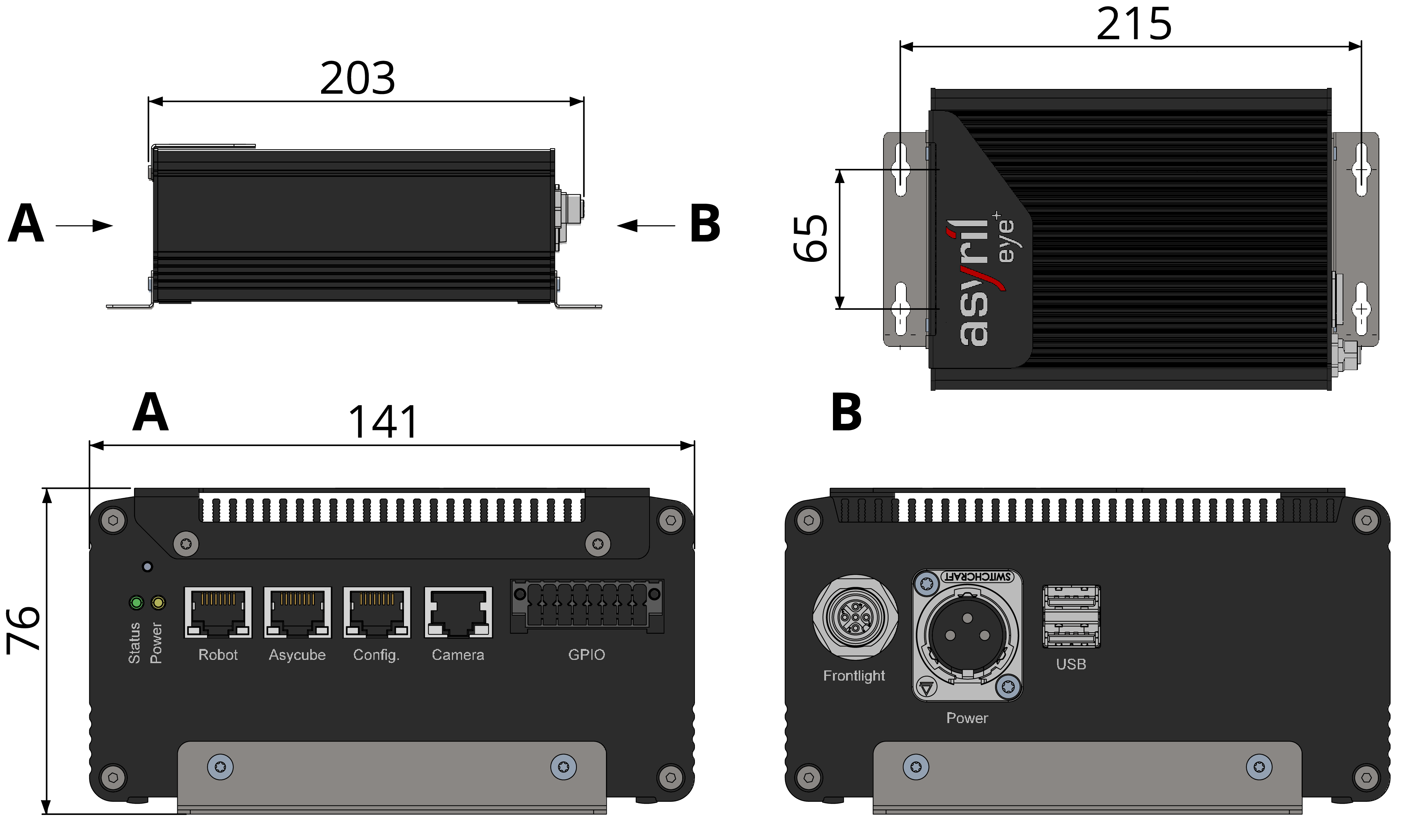

EYE+ Controller

  • Dimensions: 141 x 187 x 71 mm

  • Weight: 1.26 kg

  • Operating Temperature: +5°C to 40°C

  • Power: Voltage: +24VDC (+/- 5%)

  • Current: 12.5 A max

EYE+ camera: High resolution (6.3 MP)

Software: EYE+ Studio

Ethernet: 4x Gigabit Ethernet (PoE for the camera)

Additional cables: Ethernet cable to PLC or Robot, Ethernet cable for EYE+ Camera, Ethernet cable for Asycube (choice of length 2, 5, 10, 15 or 20 meters)

Odoo • Text and Image

Want to see the Eye+ in action?  Schedule a Virtual Demonstration and we can show you in about 15 minutes!
