Eye+ Vision System
A controller, a high-res camera, and a calibration plate. Plug and play operation and cutting edge technology
What is Eye+

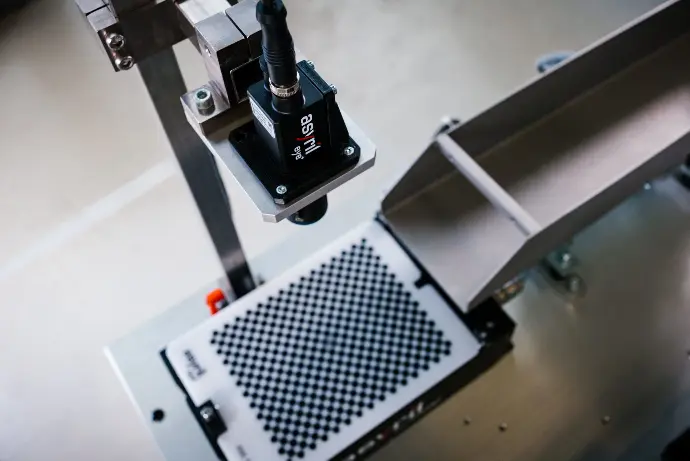

EYE+ consists of a compact controller, a high-resolution camera and a calibration plate.
This plug and play system running on the easy to use EYE+ Studio web based interface that requires no in-depth knowledge of machine vision to run your flexible pick and place application.

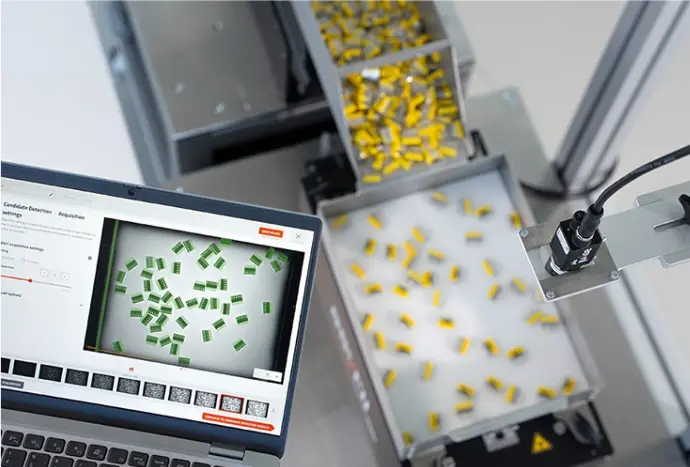

EYE+ Studio also makes it easy to configure the vision, perform hand-eye calibration, change recipes and program new parts.
How it Works
Using the configuration wizard, EYE+ Studio set up in 3 easy steps:
- Vision configuration
- Create a new recipe
- Hand-eye calibration

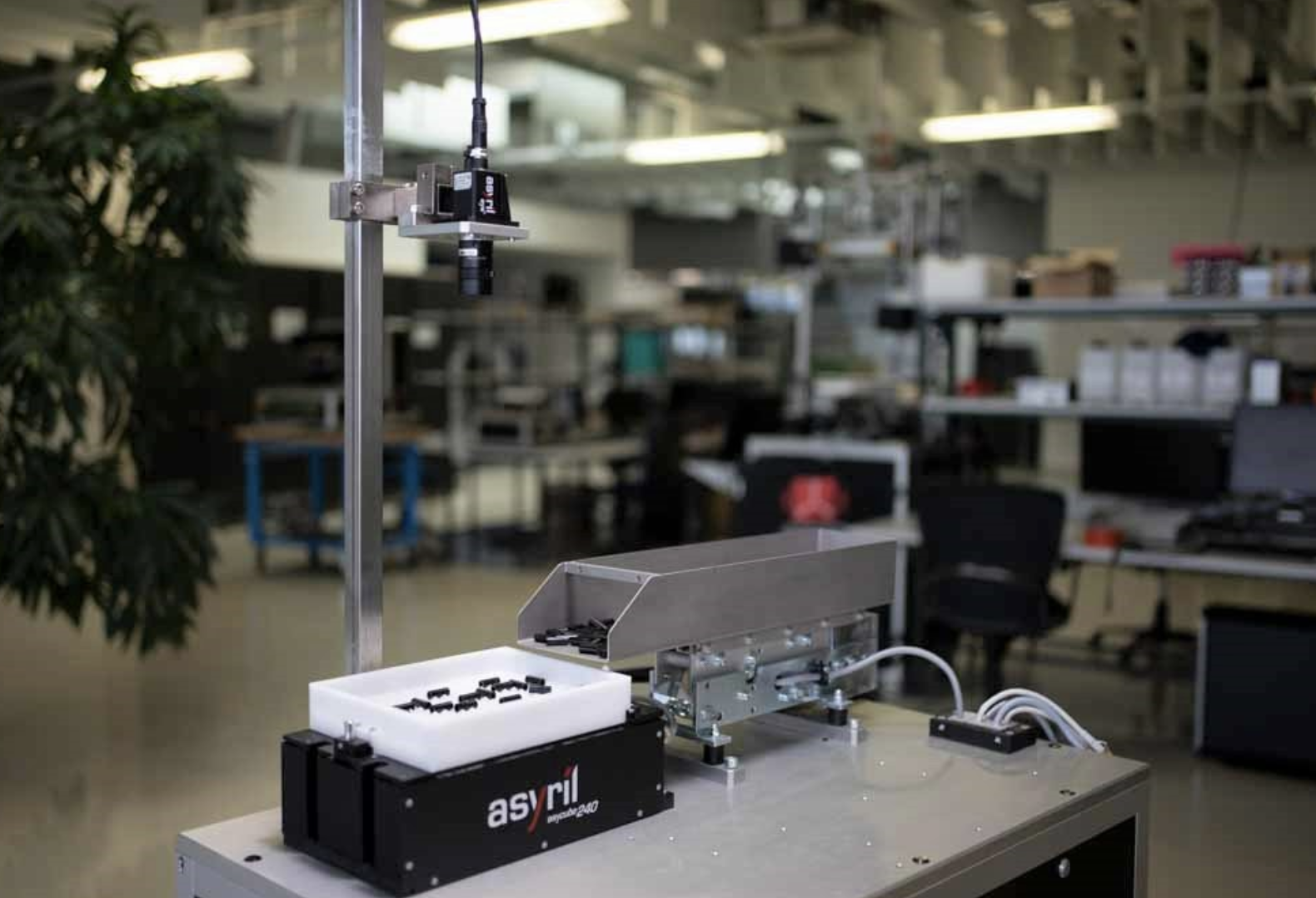

During production, EYE+ controls all the different components of the application (Asycube, hopper, vision and robot).
- Switch on the hopper to feed the Asycube
- Manage the right vibrations of Asycube
- Detect correctly oriented parts
- Pick parts from platform by robot.
Easy to use: No previous experience of machine vision required to setup and use EYE+ resulting in faster installation and lower setup costs.
Intuitive recipe creation and configuration: User friendly interface, with step-by-step instructions and explanations, makes the software easy to follow. Have a complete new system with calibrated robot and vision setup within minutes.
Plug and play: Designed to easily integrate with any size of Asycube and any industrial robot for hassle free set-up. Installation, mounting and setup can be quickly performed without any prior experience.
All included: Simply accessible via a web browser, no software download or additional licensing required. No 3rd party software or hardware required for a complete system.
Attractive: Highly competitive system costs compared to traditional solutions.
Compatible with any PLC & industrial robot brand: Command prompts are sent through TCP/IP so EYE+ is compatible with any robot brand giving pick point location for any part.
Features
All in-one kit: Controller, camera, optics, calibration plate, power cable
EYE+ Controller
- Dimensions: 141 x 187 x 71 mm
- Weight: 1.26 kg
- Operating Temperature: +5°C to 40°C
- Power: Voltage: +24VDC (+/- 5%)
- Current: 12.5 A max
EYE+ camera: High resolution (6.3 MP)
Software: EYE+ Studio
Ethernet: 4x Gigabit Ethernet (PoE for the camera)
Additional cables: Ethernet cable to PLC or Robot, Ethernet cable for EYE+ Camera, Ethernet cable for Asycube (choice of length 2, 5, 10, 15 or 20 meters)
