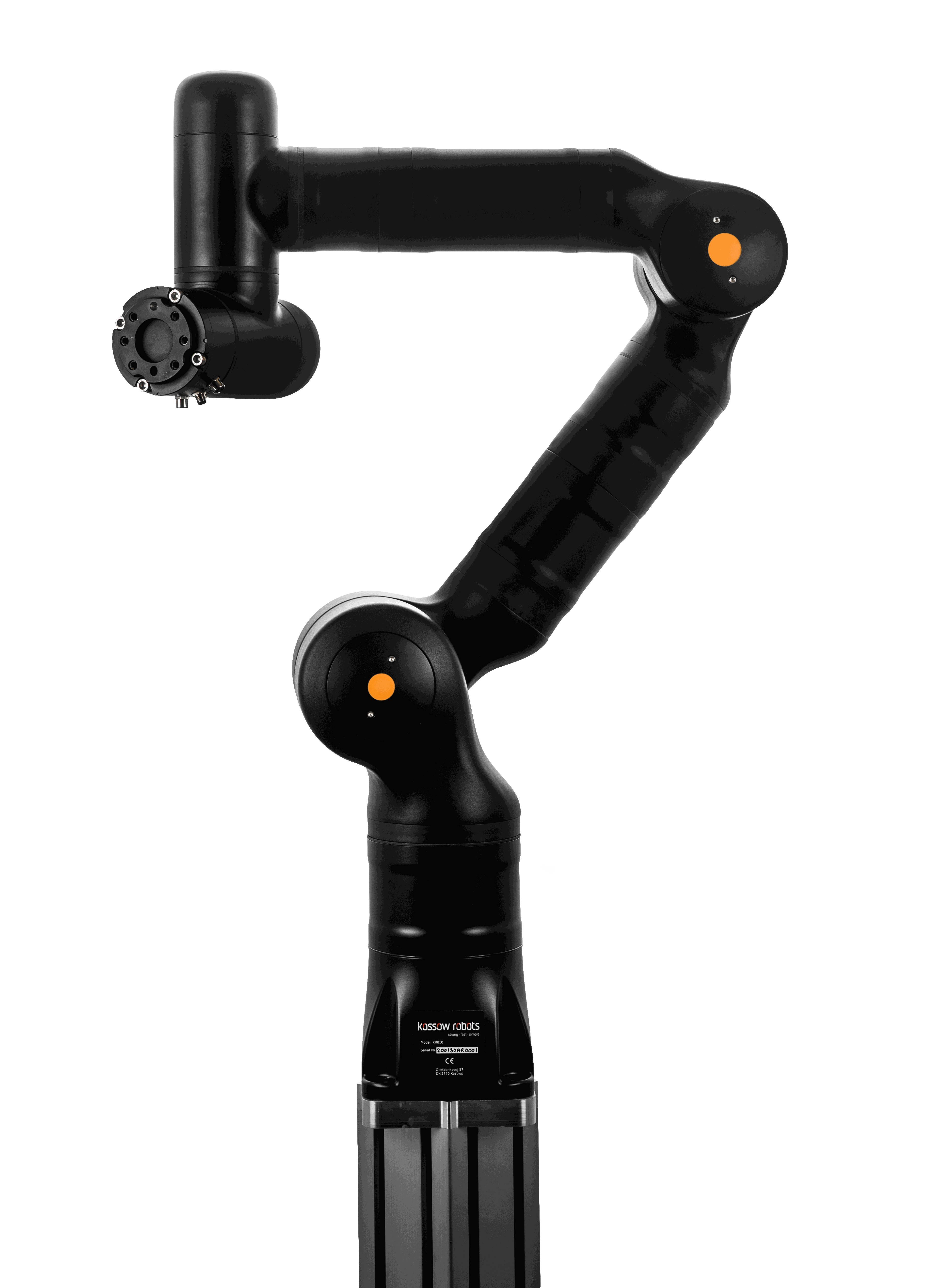

KR810

Strong and fast industrial cobot with a reach of 850 mm and a payload of 10 kg. Simple programming thanks to our special intuitive Kassow user interface.

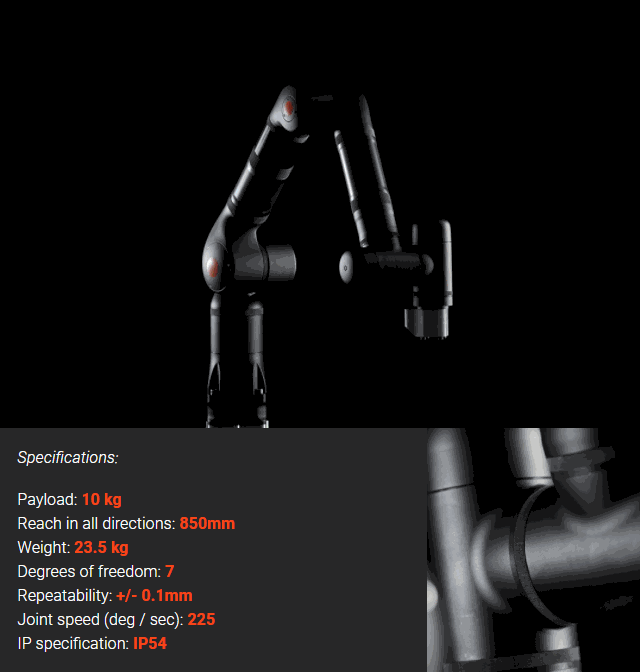

Collaborative Robot Technical Specs

General specifications KR810
Reach (mm)
850
Payload (kg) 10
Weight (kg) 24
Joint Speed (deg / sec) 225
Joint Ranges J2 and J4: -70°/+180°. J1, J3, J5, J6 and J7: ±360°
Brakes on joints Yes
Absolute encoders on joints Yes
Repeatability (mm) +/- 0.1
Degrees of freedom 7
Foot print (mm) 130x130
Operating temperature (C°) 0-45
Body material Anodized aluminum

Safety KR810
Protection rating
IP54
Work without shielding Yes*
Impact control Yes
150N safe force limit on tool Yes

Controller I/O KR810
Digital outputs 24V (pcs)
8
Relay outputs (pcs) 4
Digital inputs 3-30V (pcs) 16
Analogue I/O 0-10V (pcs) 2/2
Analogue I/O 4-20mA (pcs) 2/2
