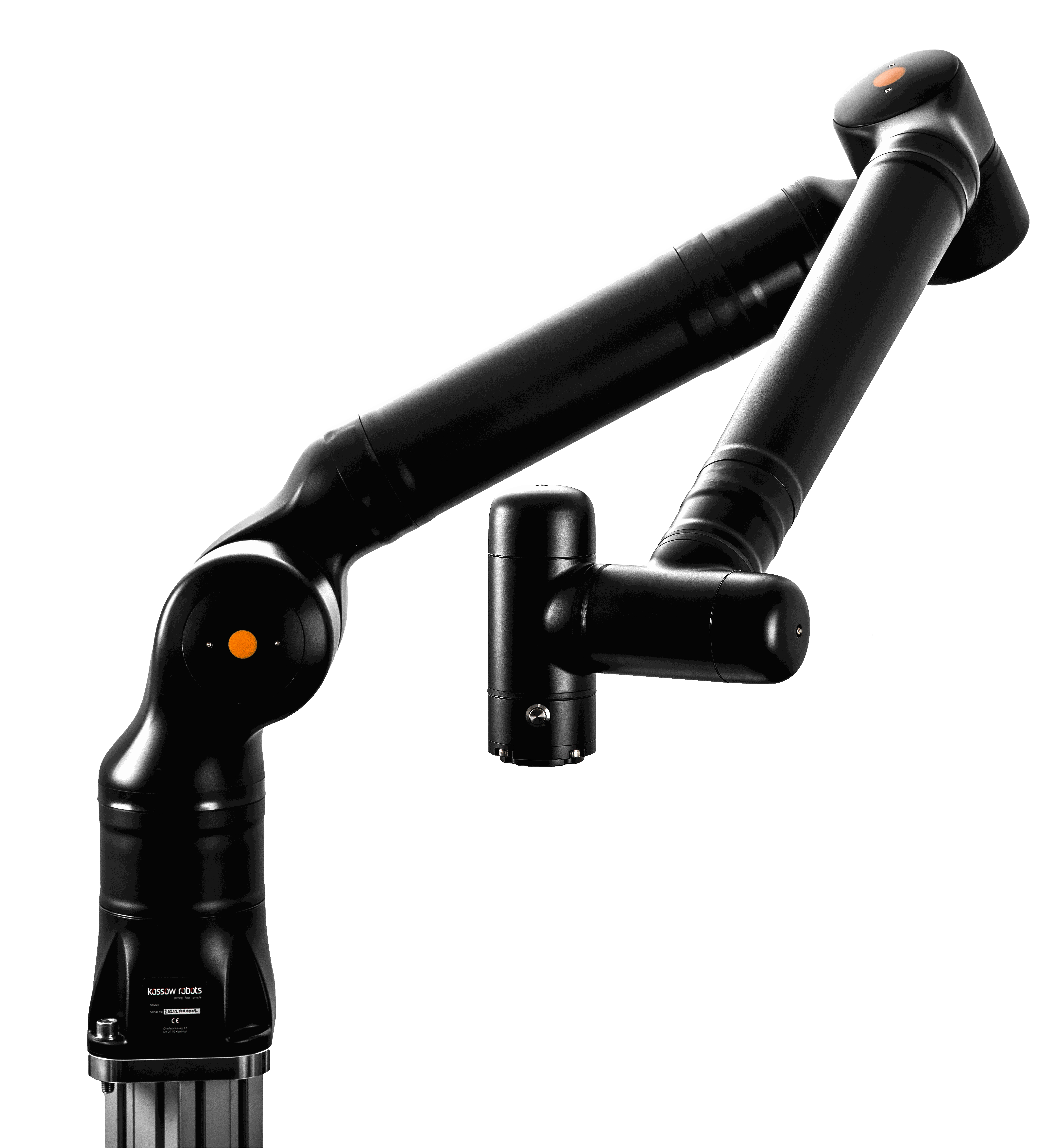

KR1410

A true power pack: Fast industrial cobot with an especially long reach of 1400 mm and no compromise on strength. Payload of 10 kg. Simple programming thanks to our special intuitive Kassow user interface.

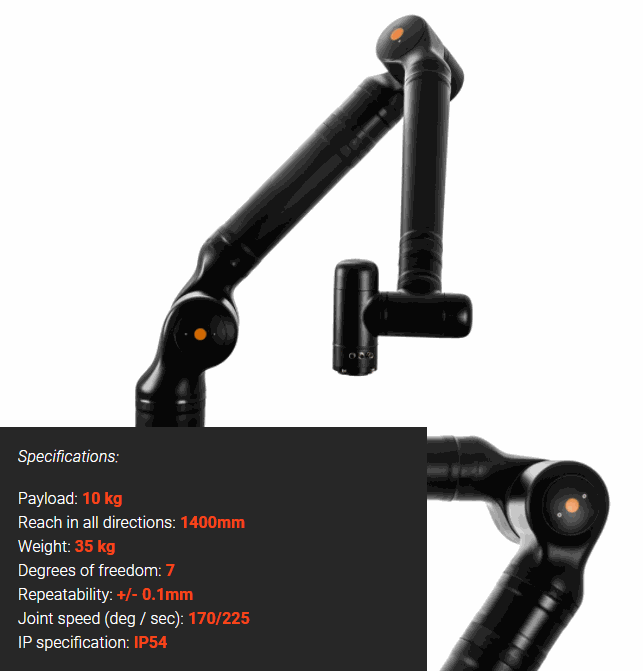

Collaborative Robot Technical Specs

General specifications KR1410
Reach (mm)
1400
Payload (kg) 10
Weight (kg) 35
Joint Speed (deg / sec) 170/225
Joint Ranges J2 and J4: -70°/+180°. J1, J3, J5, J6 and J7: ±360°
Brakes on joints Yes
Absolute encoders on joints Yes
Repeatability (mm) +/- 0.1
Degrees of freedom 7
Foot print (mm) 160x160
Operating temperature (C°) 0-45
Body material Anodized aluminum

Safety KR1410
Protection rating
IP54
Work without shielding Yes*
Impact control Yes
150N safe force limit on tool Yes

Controller I/O KR1410
Digital outputs 24V (pcs)
8
Relay outputs (pcs) 4
Digital inputs 3-30V (pcs) 16
Analogue I/O 0-10V (pcs) 2/2
Analogue I/O 4-20mA (pcs) 2/2
