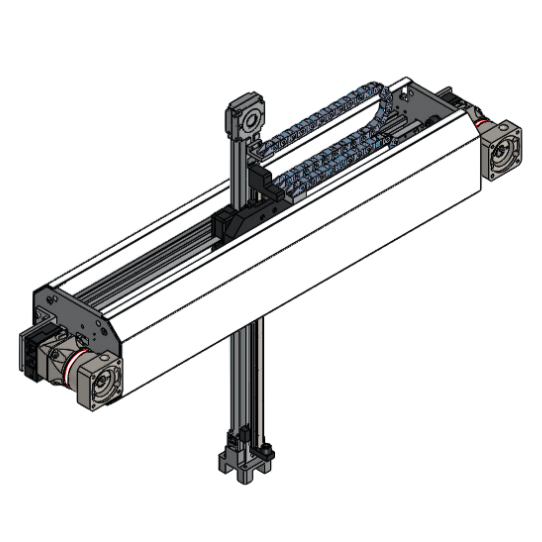

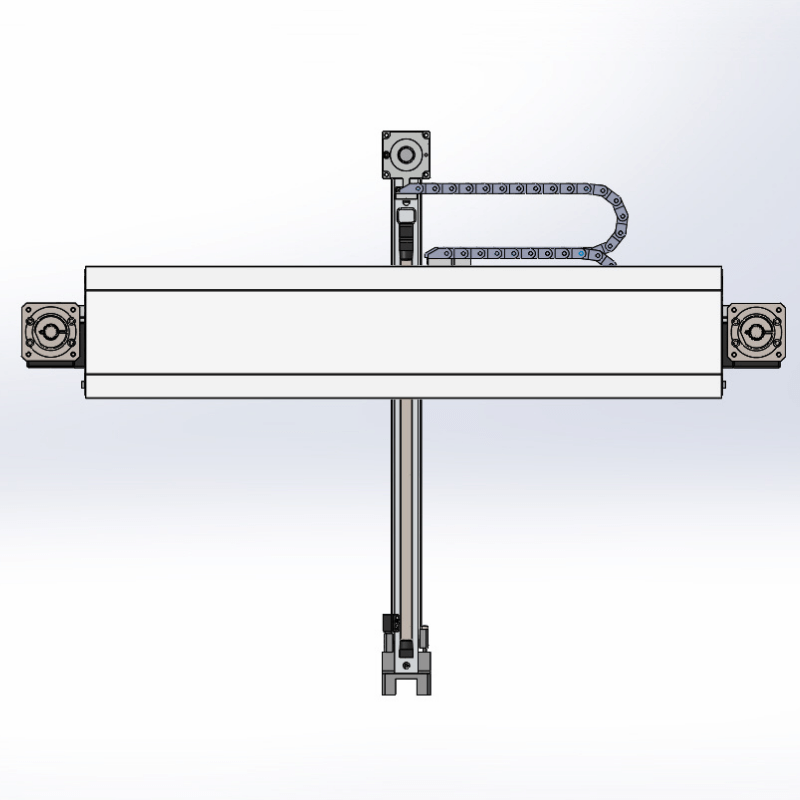

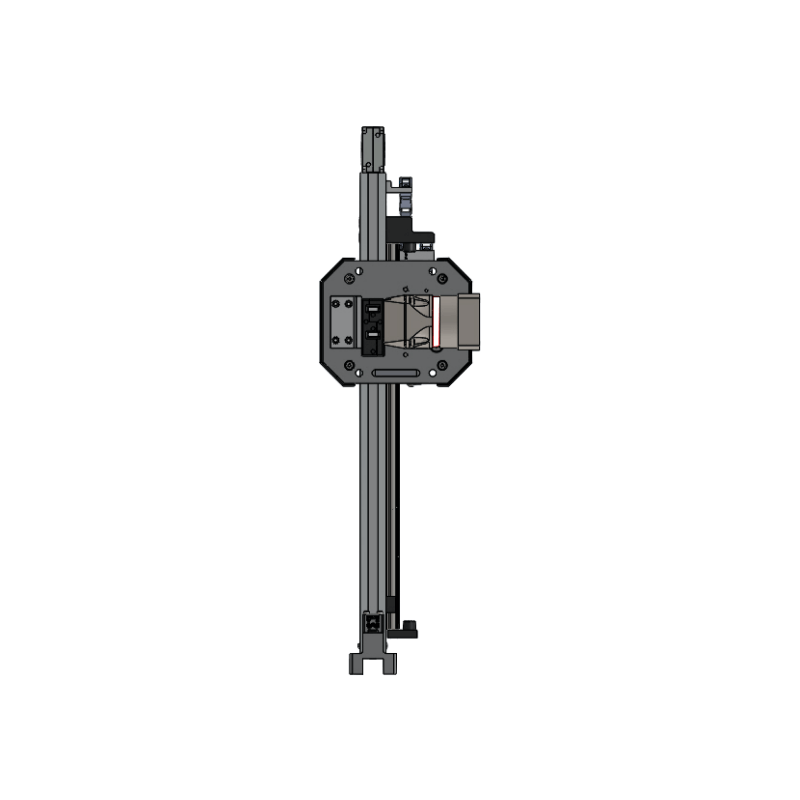

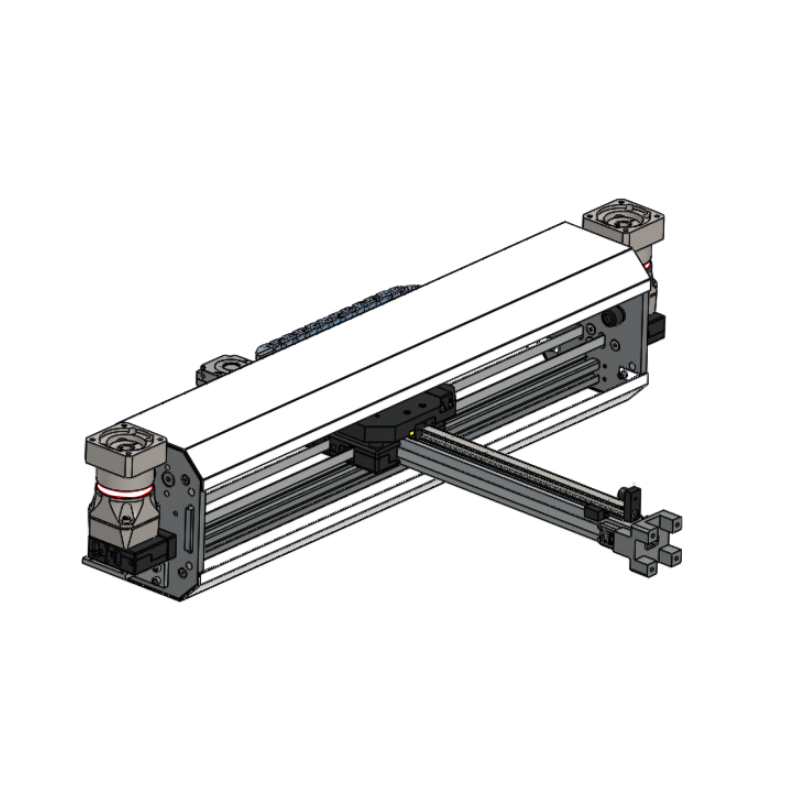

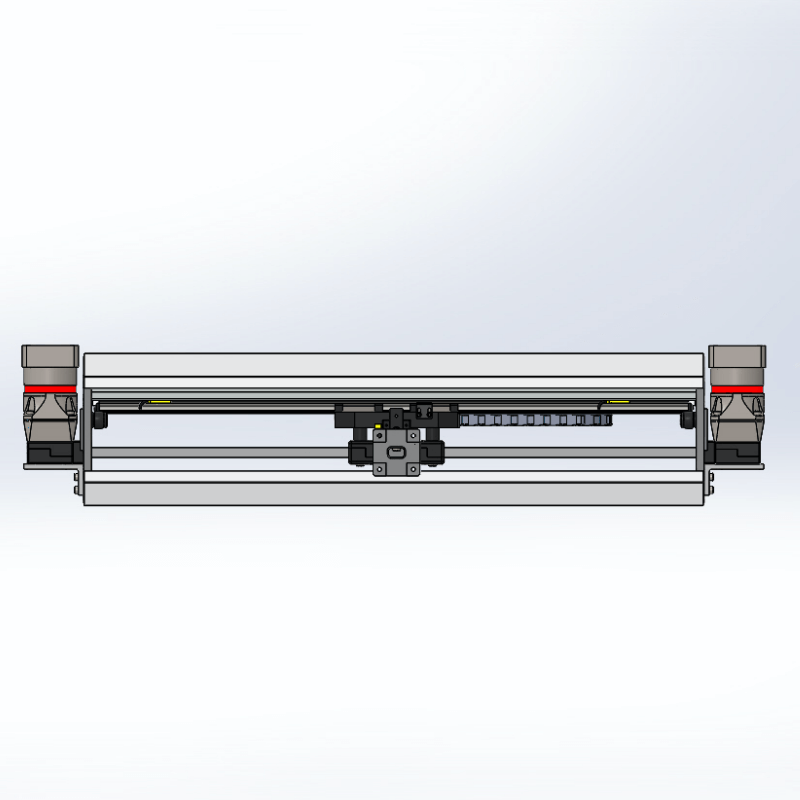

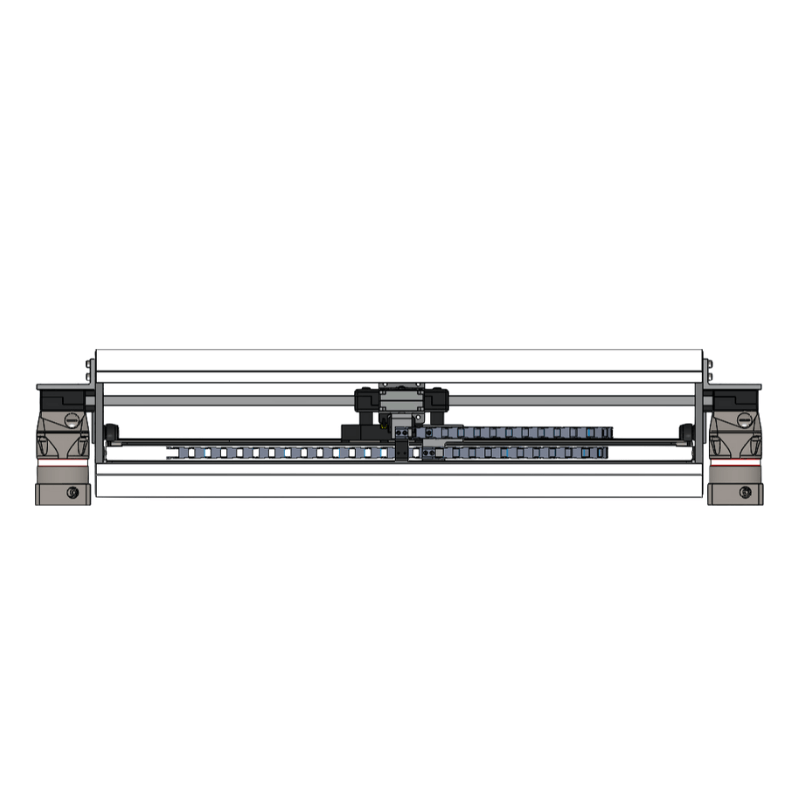

Macron T-Bot Gantry Robot


Features

  • X Axis Travel (mm) :  250 - 2000 or Customizable

  • Z Axis Travel (mm) : 250 - 1000 or Customizable

  • Fast and versatile belt driven  2 axis Pick & Place system
  • One single belt drives both axes
  • Two fixed motor mounting locations
  • Fixed motors reduce load, cable management and inertia requirements
  • Positional repeatability +/- .05 mm
  • Speeds up to 2000 mm/sec.
  • Sealed linear profile rail and bearing guidance
  • Mounting flexibility for a variety of end effectors










For information on enclosures, framing, or added products such as gearboxes, sensors, or motors for an integrated solution, send us a message and we can put a solution together that meets your project specs.

Common Applications

Material Handling
