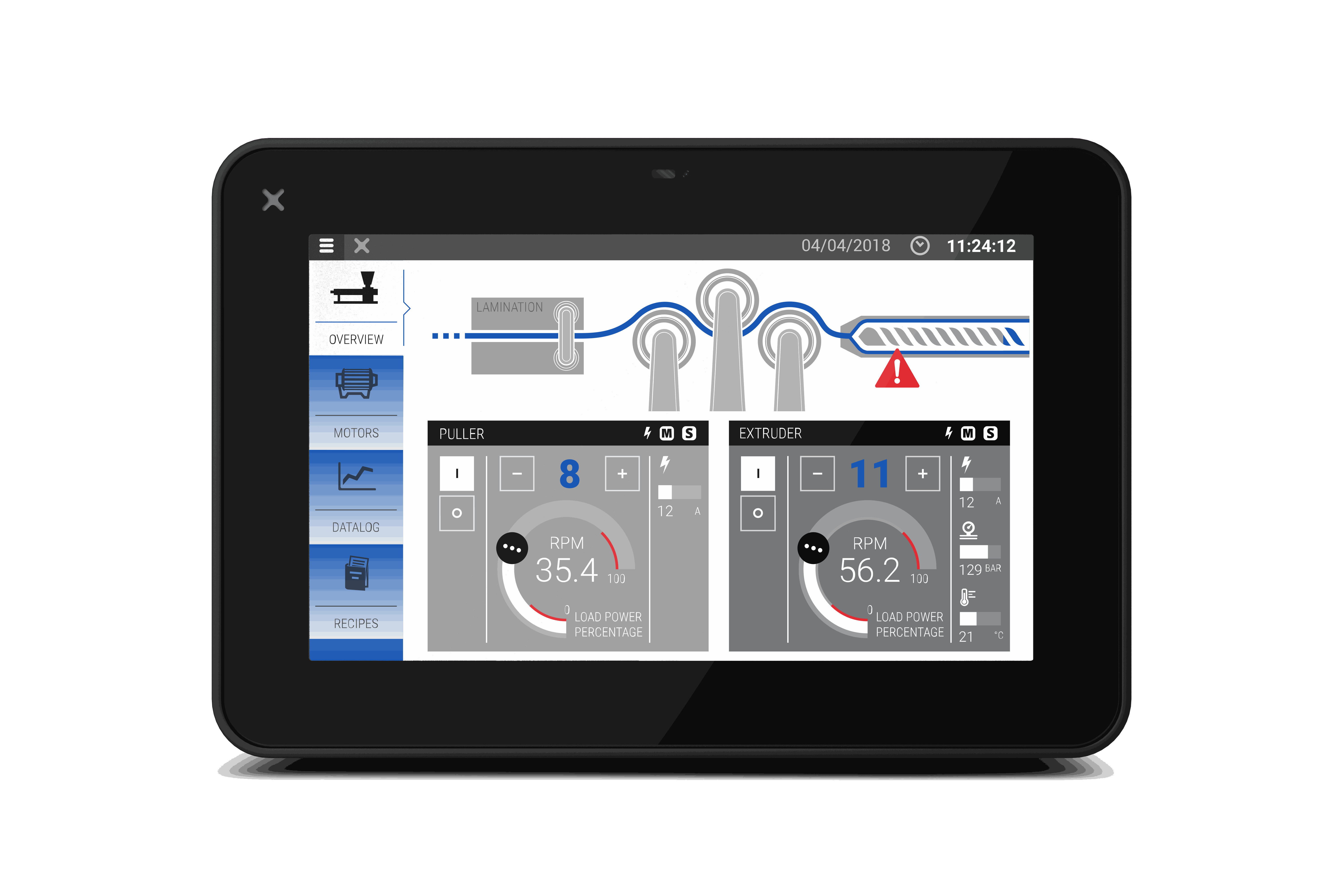

JSmart707 - Smart HMI with Support Arms

JSmart 707 is a 7 inch PoE HMI with dual core ARM Cortex A9 CPU and a touchscreen multitouch.

It can be installed in different industrial environment thanks to the dedicated hmi support arm systems.

With full IP67 environmental protection, you can place the product exactly where the operator needs to use it, without costly cabinet installation.

The addition of WiFi acts as if a second Ethernet port

Features and Benefits

  • 7 inch PCAP Touchscreen Display

  • Resolution 1024x600 pixel,

  • 16M colors, dimmable backlight

  • 10/100 Ethernet port PoE

  • Wi-Fi Connection

  • Full IP67 protection

  • Dedicated HMI support arm system

  • Includes environment and motion sensors


Overview

JSmart707 is a 7 inch HMI display for field installation in industrial areas.

High-resolution display with PCAP multitouch screen with a robust glass front; touchscreen/display bonding for fidget optical performance.

Power-over-Ethernet (PoE) for maximum simplicity of connection using standard CAT5 wiring.

The availability of a WiFi interface enhances the device integration.

Full IP67 protection with the use of dedicated connectors for the maximum flexibility of installation, from mounting arm to a simple M22 hole.

The product includes a full set of environment and motion sensors to make this device a true IIoT edge device for Industry 4.0 applications.

The JSmart product family has been optimized for use as a JMobile HMI device.

  • JMobile runtime with OPC UA Server and Client

  • Performing HTML5-compatible browser with graphic accelerator

  • Optional CODESYS V3 PLC for integrated HMI and control applications

  • Built-in sensors (temperature and acceleration)

  • Open platform for Linux applications
