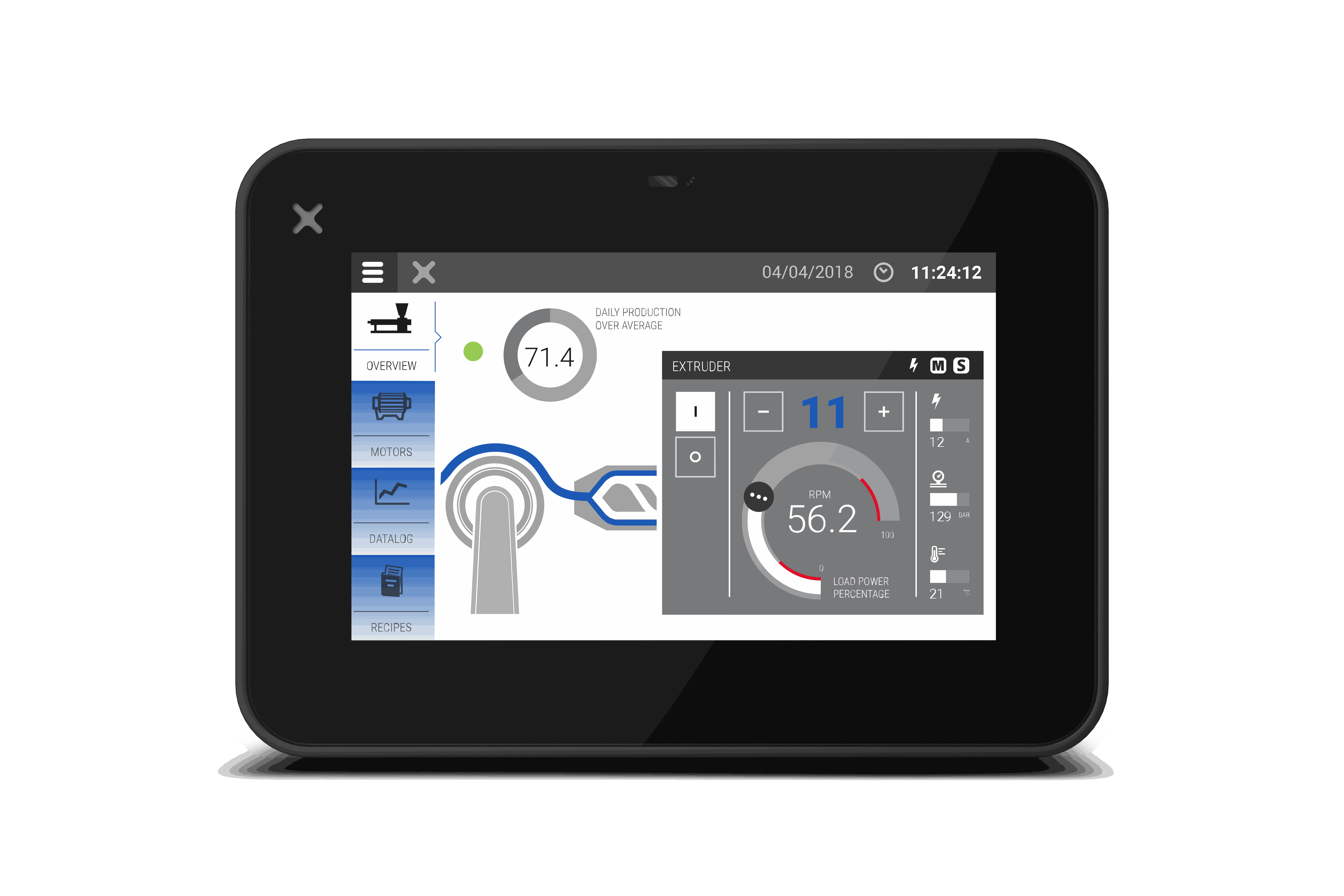

JSmart705 - Smart HMI with Support Arms

The JSmart705 is a 5 inch smart HMI with dual core 32-bit RISC dual core - 800 MHz CPU powering 16 million brilliant colours and a multitouch screen.

Patent protected ultra slim design with IP67 protection class means no need costly cabinet installation. Fully enclosed panels with IP67 protection offer decisive advantages when it comes to positioning operator terminals at the most convenient locations on the machine with various dedicated hmi support arm system

Features and Benefits

  • 5 inch display TFT color, resolution 800x480 pixel, 16M colors, dimmable backlight

  • PCAP Touchscreen Multitouch

  • 10/100 Ethernet port PoE

  • Full IP67 protection; ideal for mounting-arm installation

  • Includes environment and motion sensors


Overview

JSmart705 is the ideal smart HMI for field installation in critical areas.

High-resolution 5 inch display with PCAP touchscreen multitouch with a robust glass front; touchscreen/display bonding for fidget optical performance.

Power over Ethernet (PoE) for maximum simplicity of connection using standard CAT5 wiring. Full IP67 protection with the use of dedicated connectors for the maximum flexibility of installation, from hmi support arm systems to a simple M22 hole.

The product includes a full set of environment and motion sensors to make this device a true IIoT edge device for Industry 4.0 applications.

The JSmart product family has been optimized for use as a JMobile HMI device.

  • Performing HTML5-compatible browser with graphic accelerator

  • Open platform for Linux applications

  • JMobile runtime with OPC UA Server and Client

  • Optional CODESYS V3 PLC for integrated HMI and control applications

  • Open platform for Linux applications

  • Built-in sensors (temperature and acceleration)
