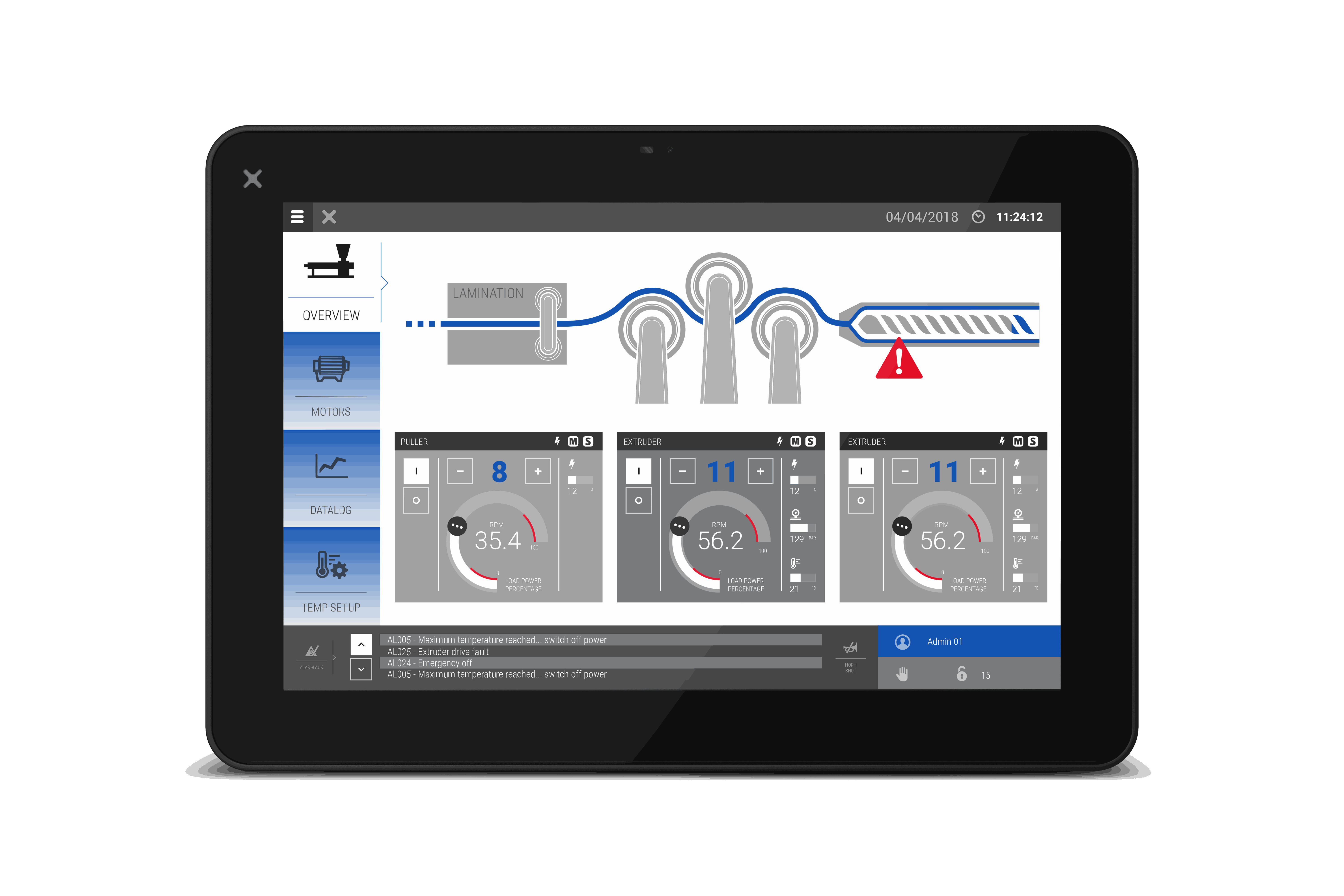

JSmart710 - Smart HMI with Support Arms
The JSmart710 is a dual core CPU HMI with 16 million colour brilliance and a multitouch PCAP display.
JSmart710 is a PoE HMI with 10/100 Ethernet port single cable for power and ethernet.
Fully enclosed panels with IP67 protection offer decisive advantages when it comes to positioning operator terminals at the most convenient locations on the machine with various dedicated hmi support arm system.
EXOR International has developed an extensive array of attachment options for all swing arm type installations.
Features and Benefits
-
10 inch display, resolution 1280x800 pixel
-
16M colors, dimmable backlight
-
PCAP Multitouch Screen
-
WiFi Connection
-
10/100 Ethernet port PoE
-
Full IP67 protection
-
Ideal for swing arm mounting
-
Includes environment and motion sensors
Overview
JSmart710 is a WiFi HMI for field installation in critical areas.
High-resolution 10 inch display with multitouch PCAP touchscreen with a robust glass front; touchscreen/display bonding for fidget optical performance.
Power over Ethernet (PoE) for maximum simplicity of connection using standard CAT5 wiring. The availability of a Wi-Fi interface enhances the device integration.
Full IP67 protection with the use of dedicated connectors for the maximum flexibility of installation, from mounting arm to a simple M22 hole.
The product includes a full set of environment and motion sensors to make this device a true IIoT edge device for Industry 4.0 applications.
The JSmart product family has been optimized for use as a JMobile HMI device.
-
JMobile runtime with OPC UA Server and Client
-
Optional CODESYS V3 PLC for integrated HMI and control applications
-
Open platform for Linux applications
-
Performing HTML5-compatible browser with graphic accelerator
-
Built-in sensors (temperature and acceleration)
