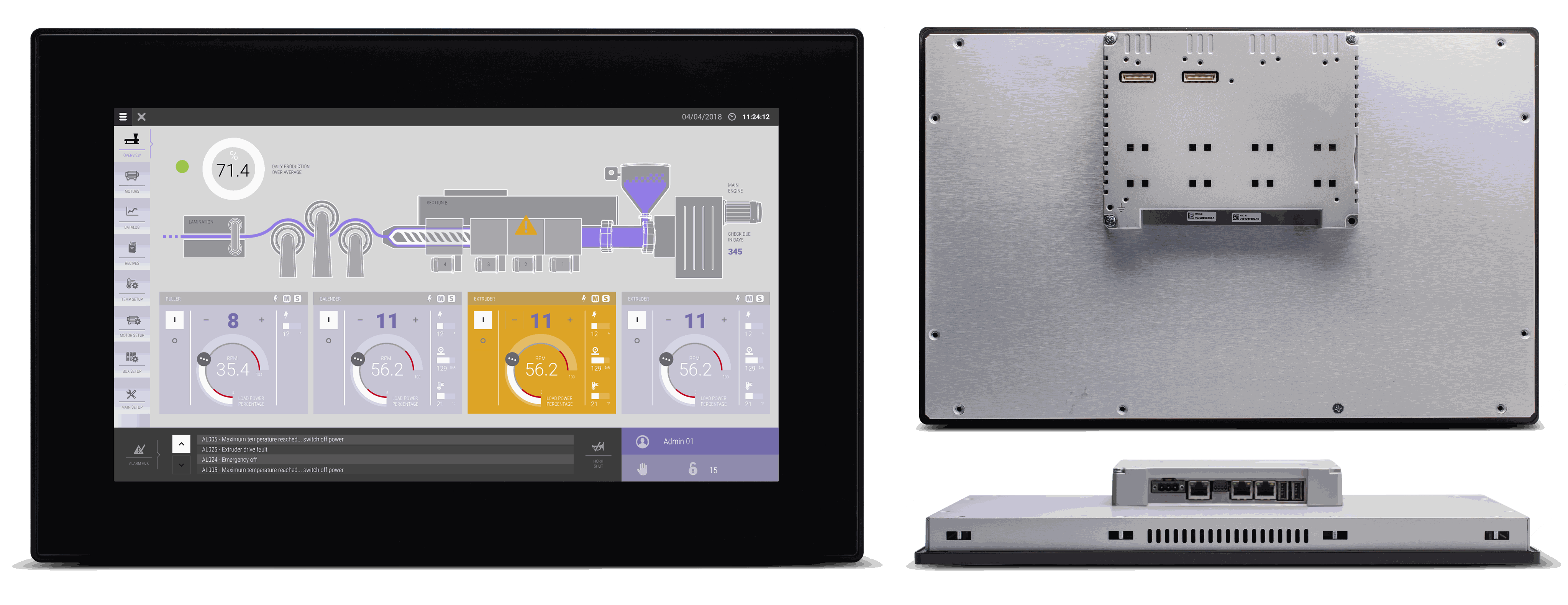

eX715M Web

The WEB HMI eX715M by EXOR International combine state-of-the-art connectivity features and top web browsing performance in a great designed and robust HMI.

It is the ideal choice for all demanding IoT edge applications in factory, marine and building automation where powerful and performing HTML5 web browser is needed.

HTML5 web application interfaces are used to display and interact with real time data. As a Web HMI, eX715M can easily display HTML5 data from multiple devices.

Features and Benefits

Chromium based HTML5 Browser



Easy to use browser setting application


15 inch color display, resolution 1366x768 pixel

Dimmable LED backlight

Projected capacitive touchscreen. True glass design.

Multitouch operation

Operating Temperature -20°C to +60°C

IECEx, ATEX, DNV-GL, cULus, cULus: Class 1 Div 2


Overview

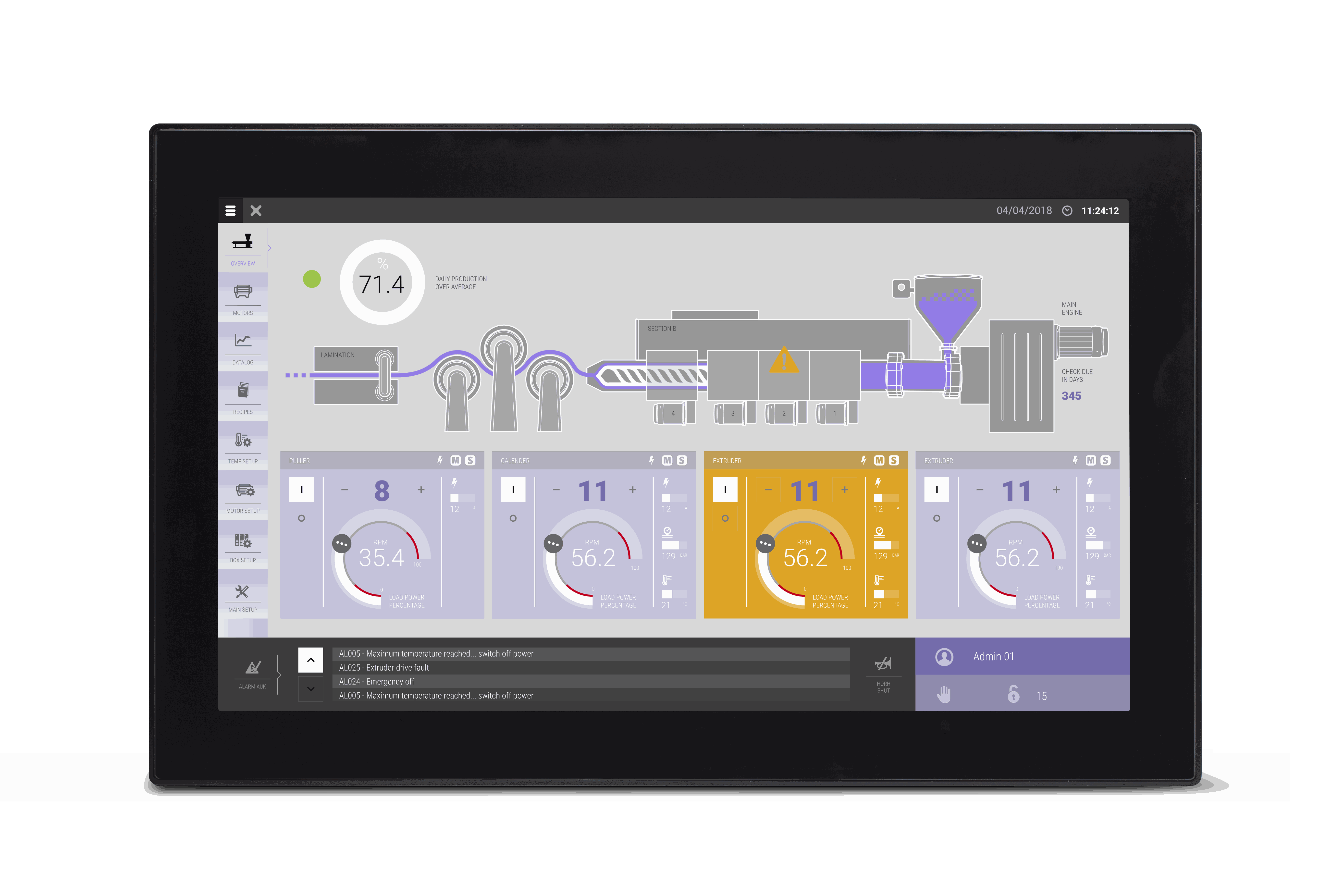

The glass projected capacitive touchscreen and the brilliant 15 inch widescreen display with resolution of 1366x768 guarantee great optical performance; with the support of multitouch gesture programming they can create the most natural human interfaces.

eX715M HMI offers a revolutionary UI, unlike anything seen in the industrial sector and include a Chromium based HTML5 browser supporting kiosk mode operation. Supports Corvina Cloud secure connectivity with full network separation.
