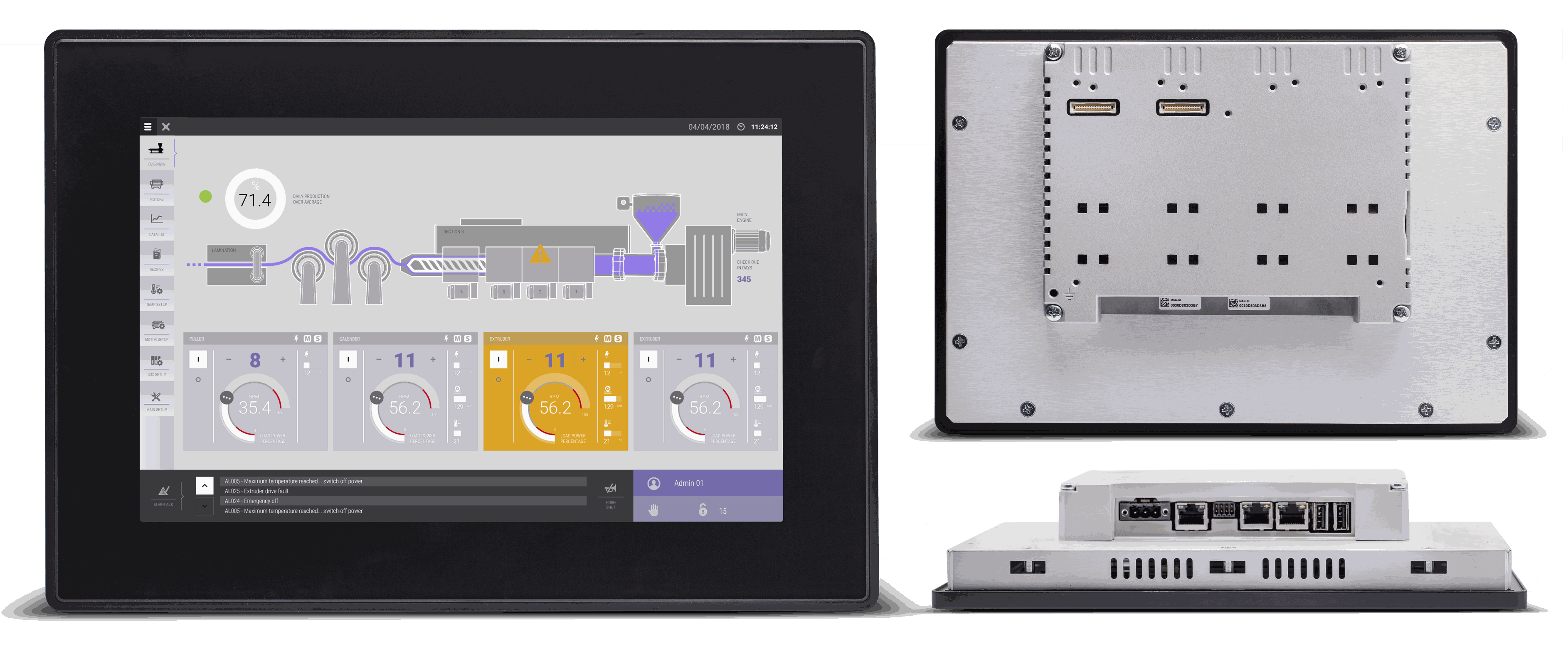

eX710M Web

The WEB HMI eX710M by EXOR International is the ideal choice for all demanding IoT edge applications in factory, marine and building automation where powerful and performing HTML5 web browser is needed.

The eX710M offers a revolutionary UI, unlike anything seen in the industrial sector and combine state-of-the-art connectivity features and top web browsing performance in a great designed and robust HMI. HTML5 web application interfaces are used to display and interact with real time data. As a Web HMI, eX710M can easily display HTML5 data from multiple devices.

Features and Benefits

Chromium based HTML5 Browser


Easy to use browser setting application

10 inch color display, resolution 800x480 pixel

Dimmable LED backlight

Projected capacitive touchscreen. True glass design.

Multitouch operation

Operating Temperature -20°C to +60°C

IECEx, ATEX, DNV-GL, cULus, cULus: Class 1 Div 2


The glass projected capacitive touchscreen and the brilliant 10 inch widescreen display with resolution of 1280x800 guarantee great optical performance; with the support of multitouch gesture programming they can create the most natural human interfaces.

eX710M Web HMI include a Chromium based HTML5 browser supporting kiosk mode operation. Supports Corvina Cloud secure connectivity with full network separation.
