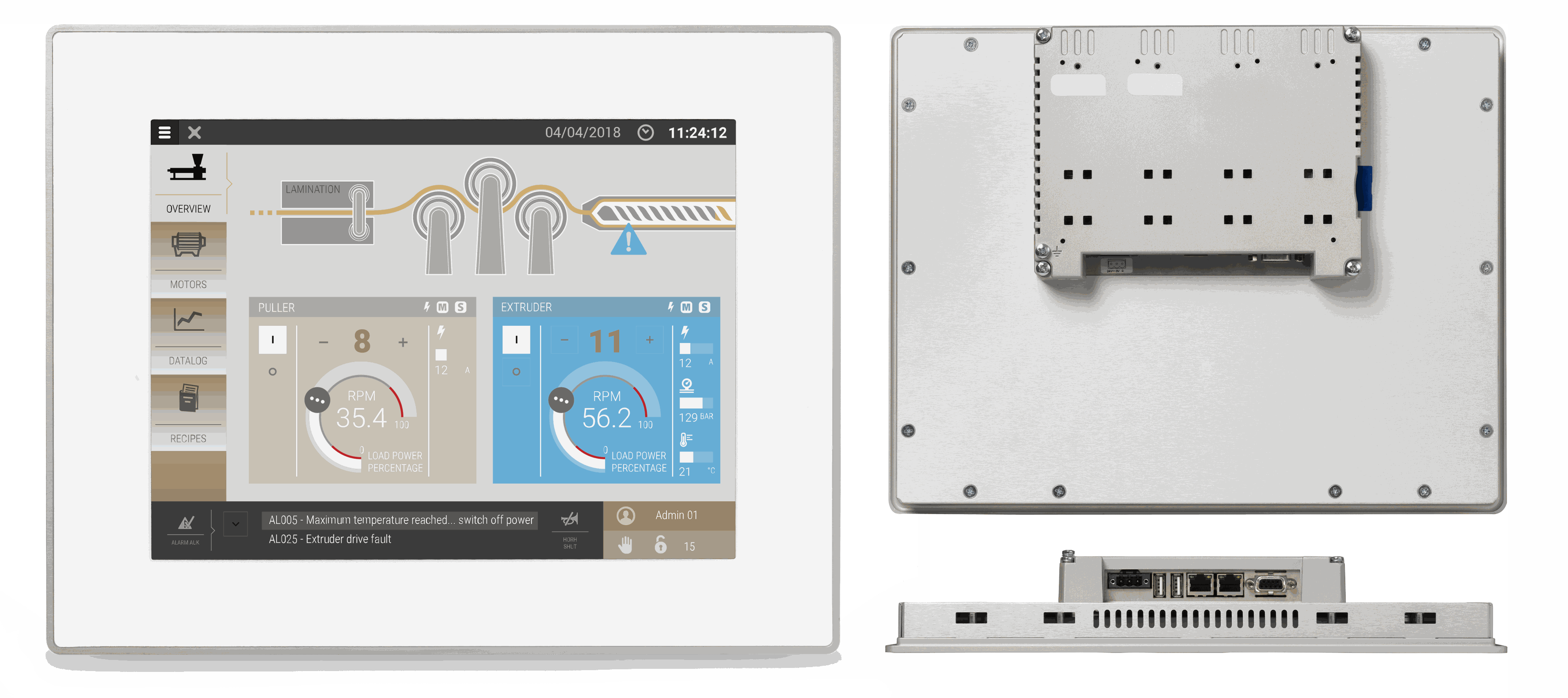

eTOP513 - Classic HMI

The eTOP513 features a bright 13”3 widescreen (16:9) TFT display with a fully dimmable LED backlight.

Hardware and software choices made by EXOR enhance its communication capability and make it the ideal choice for small applications.

The JMobile software offers full vector graphic capabilities and plenty of connectivity options.

Features and Benefits

  • 13”3 WXGA TFT color display

  • LED backlight

  • 1280×800 pixel (SVGA) resolution

  • 64K colors

  • Resistive touchscreen

  • 2 Ethernet ports with switch function

  • 2 USB Host ports

  • SD Card Slot

  • Connection to fieldbus systems and I/O using optional plug-in modules

  • Slim design. Mounting depth less than 50mm

  • 5 Year Warranty

  • Innovative mechanical design and all-metal enclosure

  • Available in different sizes from 4.3“ to 15“

  • High-performance touchscreen HMI’s

  • Brilliant displays with LED technology all in full color

  • Gateway function, remote installation of application and remote assistance

  • Ethernet, USB, serial ports and MPI integrated

  • Optional plug-in modules for fieldbus systems and networks

  • Support SD Card

  • Coating on all Electronic Boards

  • Front available in three colors (White/Black/Silver)

  • Special versions for special applications

  • Powerful and intuitive programming with JMobile Studio

  • Support of a wide range of communication drivers

  • Data display as numerical, text, bargraph, analog gauges and graphic image formats

  • Data acquisition and trend presentation

  • Recipe data handling

  • Full support of multi-language applications

  • Powerful script language

  • Optional IEC 61131-3 integrated PLC (CODESYS V2 or V3)

  • Alarm handling

  • User and group access control

  • Monitoring and remote control

  • Report printing to USB printer


Overview

The ideal choice for all demanding HMI applications including factory and building automation.

The eTOP513 features a bright 13”3 widescreen (16:9) TFT display with a fully dimmable LED backlight.

The JMobile software offers full vector graphic capabilities and plenty of connectivity options.

Hardware and software choices made by EXOR enhance its communication capability and make it an ideal choice
