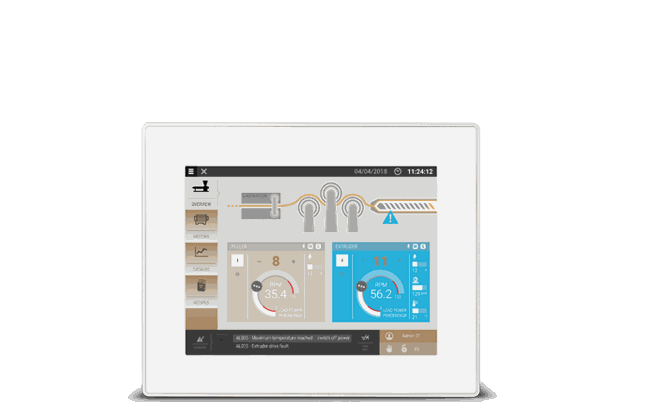

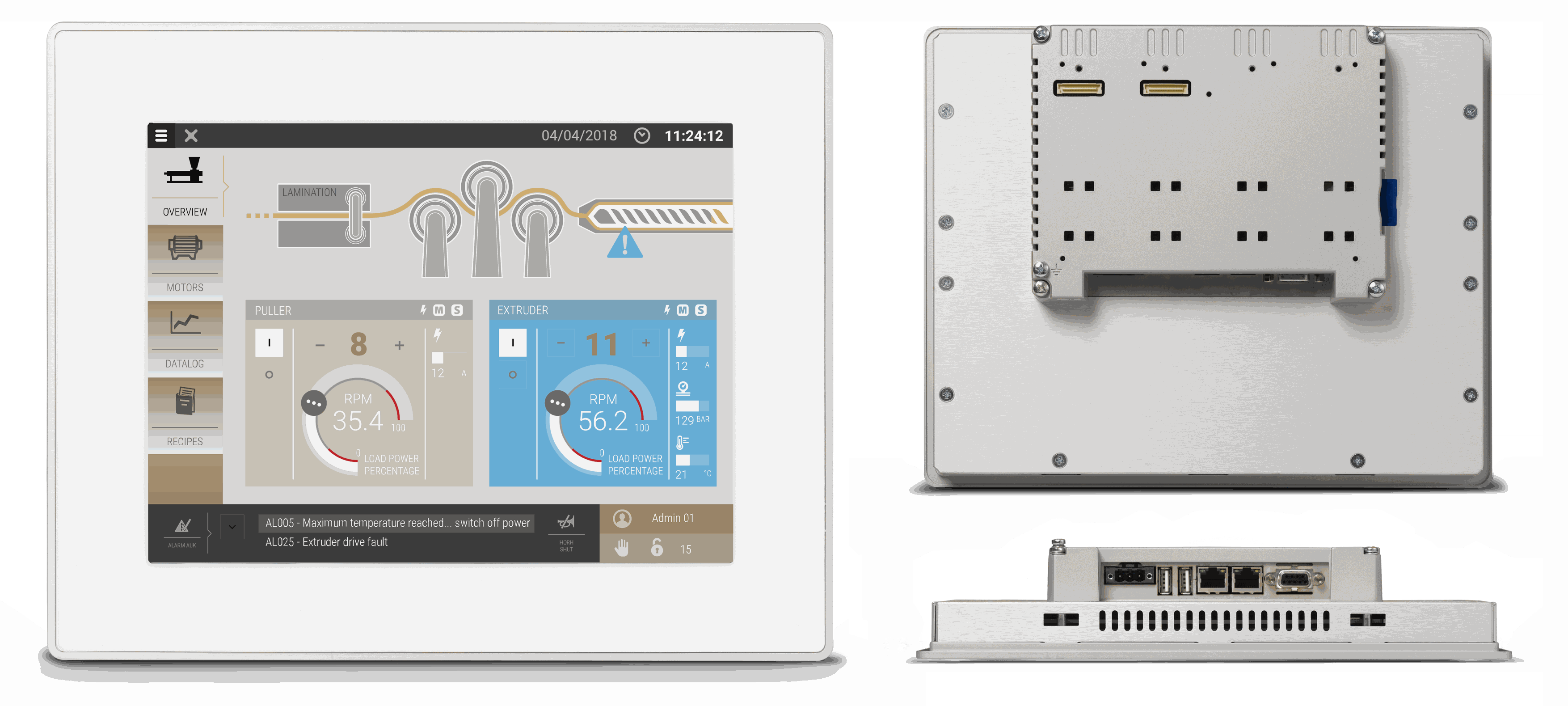

eTOP510 - Classic HMI

The eTOP510 features a bright 10”4 TFT displaywith a fully dimmable LED backlight.

The JMobile software offers full vector graphic capabilities and a complete set of connectivity options.

Features and Benefits

  • 10”4 SVGA TFT color display

  • LED backlight

  • 800×600 pixel (WVGA) resolution

  • 64K colors

  • Resistive touchscreen

  • 2 Ethernet ports with switch function

  • 2 USB Host ports

  • SD Card Slot

  • Connection to fieldbus systems and I/O using optional plug-in modules

  • Slim design. Mounting depth less than 50mm

  • 5 Year Warranty

  • Innovative mechanical design and all-metal enclosure

  • Available in different sizes from 4.3“ to 15“

  • High-performance touchscreen HMI’s

  • Brilliant displays with LED technology all in full color

  • Gateway function, remote installation of application and remote assistance

  • Ethernet, USB, serial ports and MPI integrated

  • Optional plug-in modules for fieldbus systems and networks

  • Support SD Card

  • Coating on all Electronic Boards

  • Optional IEC 61131-3 integrated PLC (CODESYS V2 or V3)

  • Front available in three colors (White/Black/Silver)

  • Special versions for special applications

  • Powerful and intuitive programming with JMobile Studio

  • Support of a wide range of communication drivers

  • Data display as numerical, text, bargraph, analog gauges and graphic image formats

  • Data acquisition and trend presentation

  • Recipe data handling

  • Full support of multi-language applications

  • Powerful script language

  • Alarm handling

  • User and group access control

  • Monitoring and remote control

  • Report printing to USB printer


Overview

The eTOP510 features a bright 10”4 TFT display with a fully dimmable LED backlight. The JMobile software offers full vector graphic capabilities and a complete set of connectivity options.

Hardware and software choices made by EXOR enhance its communication capability and make it the ideal choice for your applications.
