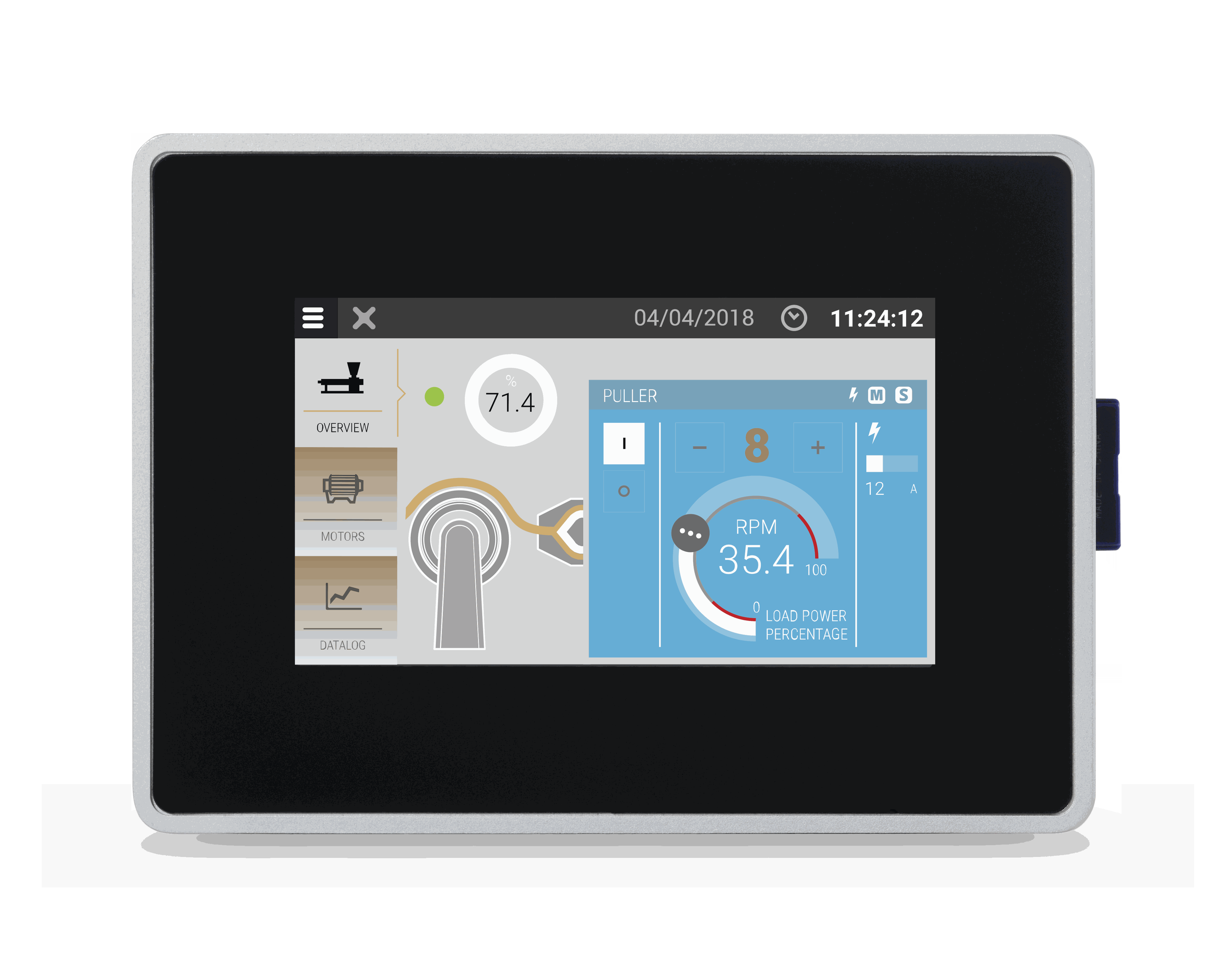

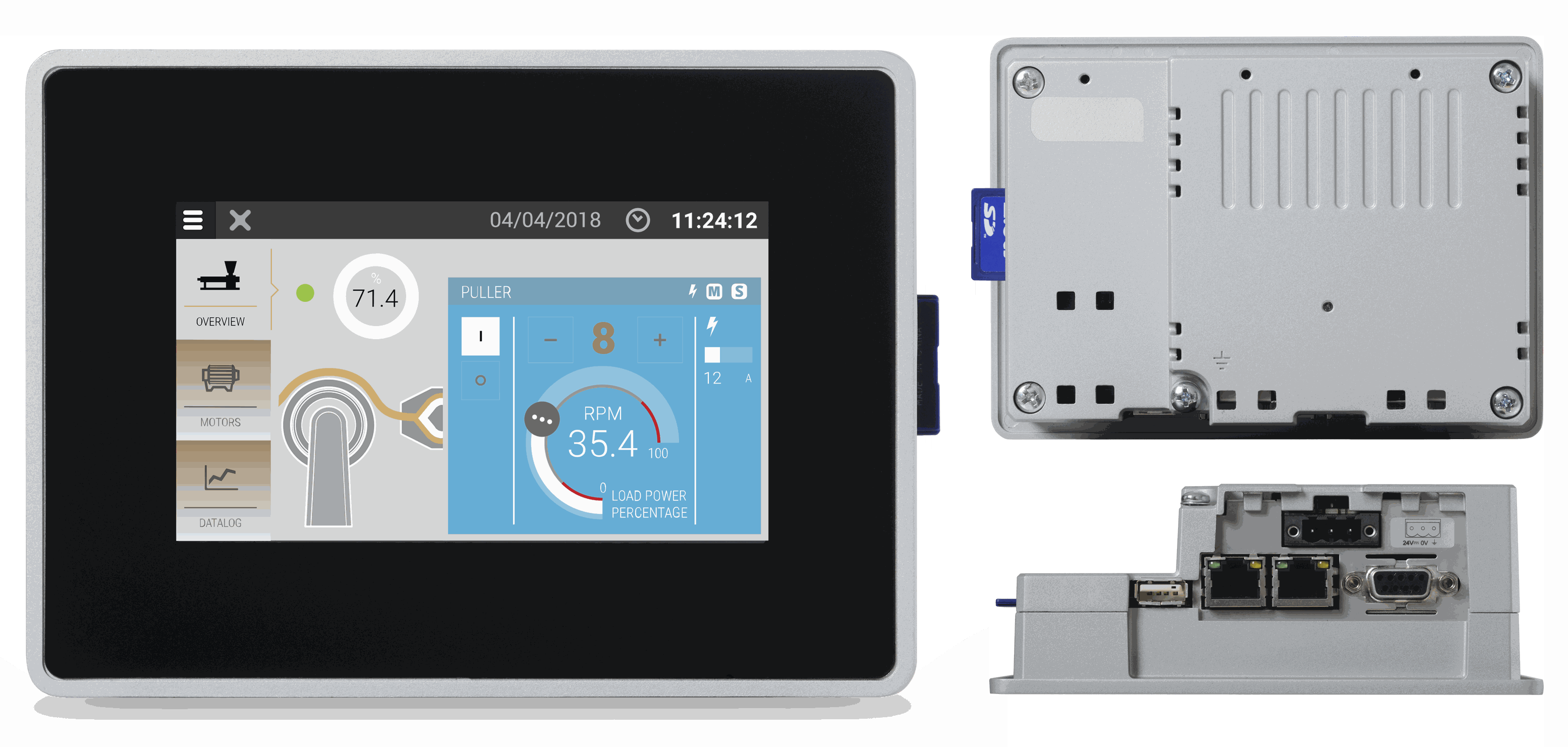

eTOP504 - Classic HMI

The eTOP504 compact 4,3” widescreen display completes the eTOP series 500 with a no compromise low-cost product.

The built-in dual 100Mb Ethernet interfaces with switch function enhance its communication capability and make it the ideal choice for small applications.

Features and Benefits

  • 4.3” TFT color display

  • 480×272 pixel resolution

  • 64K colors

  • Resistive touchscreen

  • 2 Ethernet ports with switch function

  • USB Host port

  • SD Card slot

  • Multi-standard Serial Port

  • Connection to bus systems using optional plug-in modules

  • 5 Year Warranty

  • Innovative mechanical design and all-metal enclosure

  • Available in different sizes from 4.3“ to 15“

  • High-performance touchscreen HMI’s

  • Brilliant displays with LED technology all in full color

  • Gateway function, remote installation of application and remote assistance

  • Ethernet, USB, serial ports and MPI integrated

  • Optional plug-in modules for fieldbus systems and networks

  • Support SD Card

  • Coating on all Electronic Boards

  • Optional IEC 61131-3 integrated PLC (CODESYS V2 or V3)

  • Front available in three colors (White/Black/Silver)

  • Special versions for special applications

  • Powerful and intuitive programming with JMobile Studio

  • Support of a wide range of communication drivers

  • Data display as numerical, text, bargraph, analog gauges and graphic image formats

  • Data acquisition and trend presentation

  • Recipe data handling

  • Full support of multi-language applications

  • Powerful script language

  • Alarm handling

  • User and group access control

  • Monitoring and remote control

  • Report printing to USB printer

  • Optional IEC 61131-3 integrated PLC (CODESYS V2 or V3)


Overview

The eTOP Series 500 combine state-of-the-art features and top performance with an outstanding design.

The eTOP Series 500 come with a choice of certifications and approvals that make them the solution of choice for all requirements.


Related Products

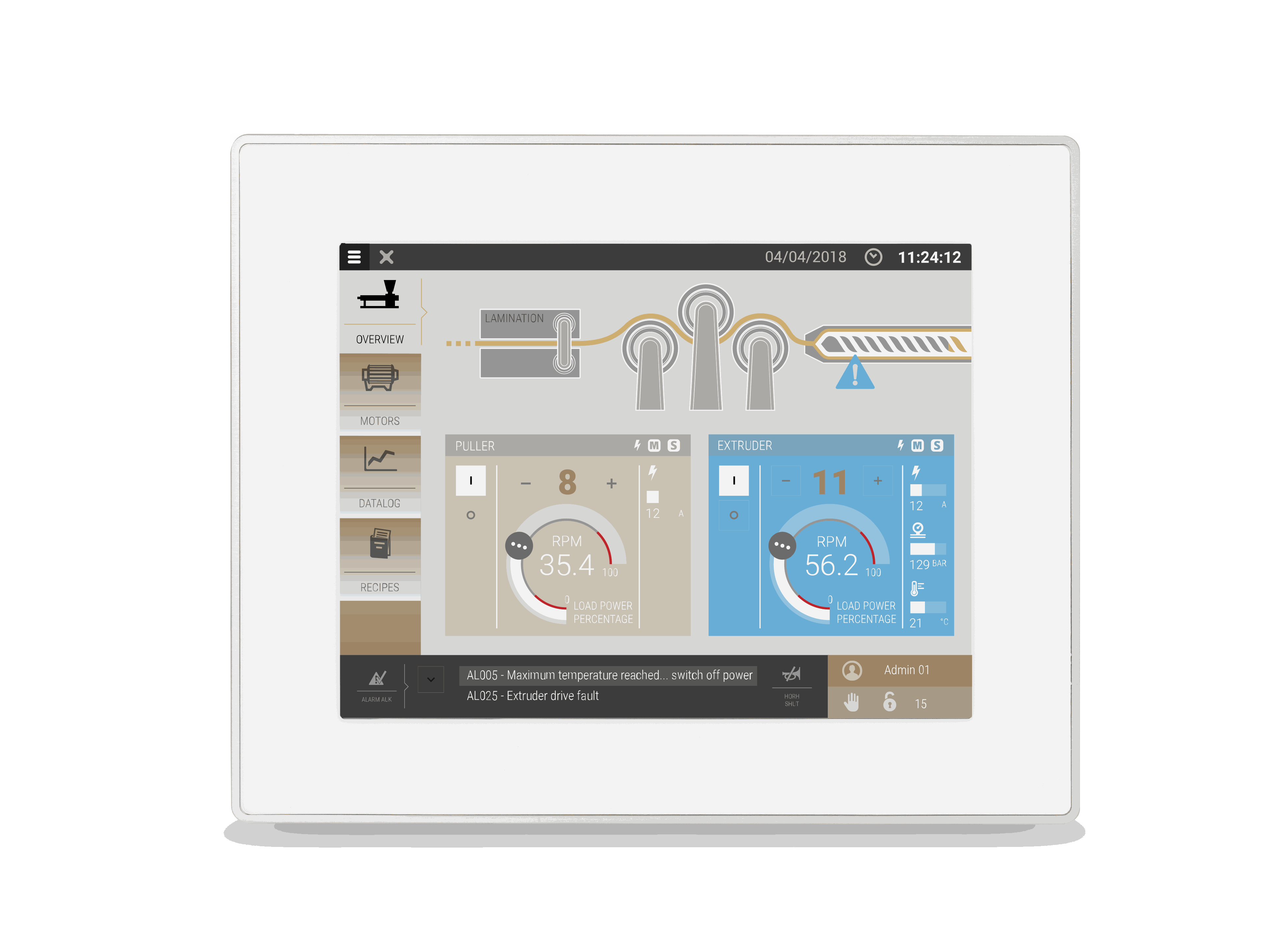

eTOP510

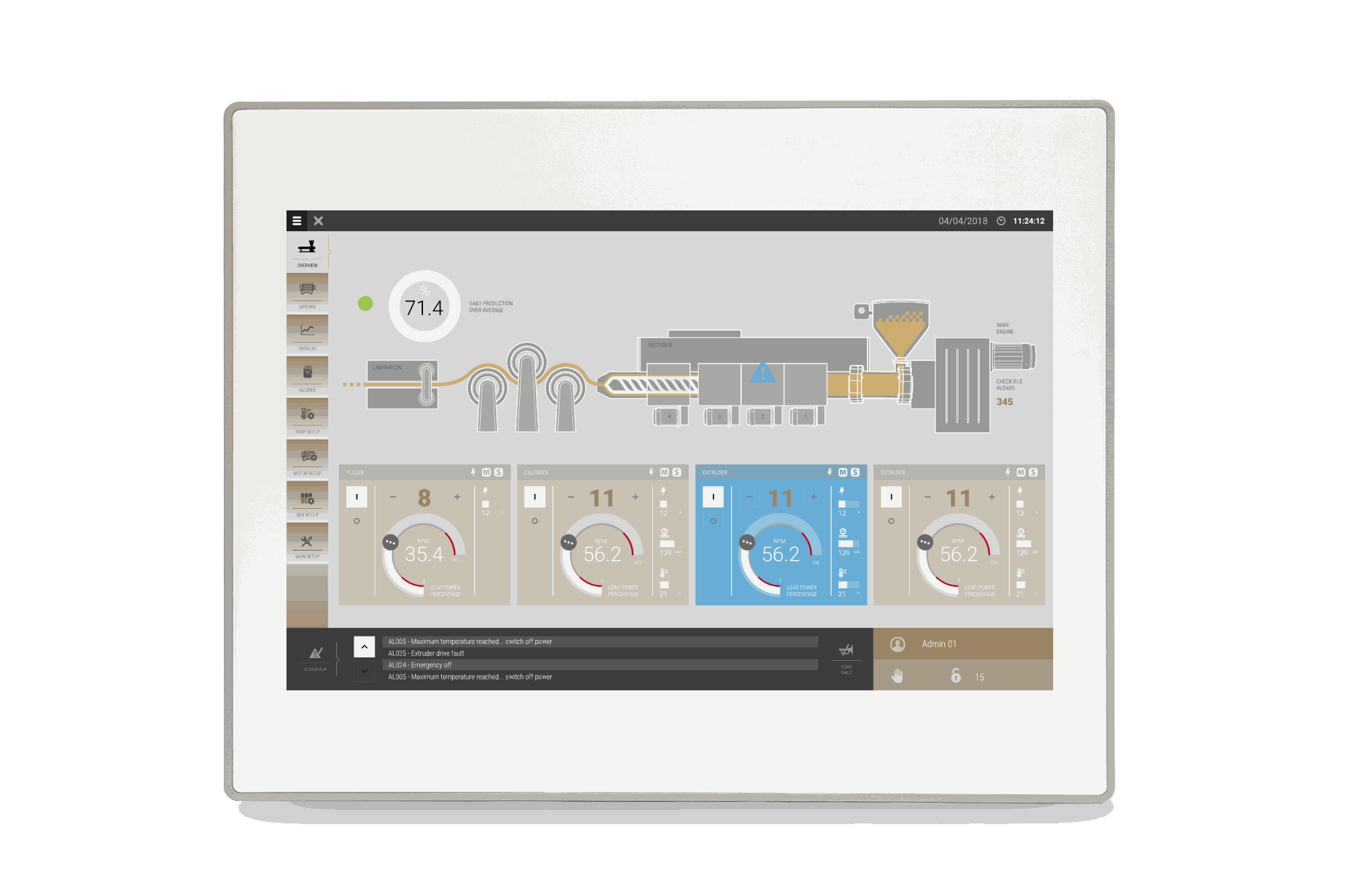

eTOP513

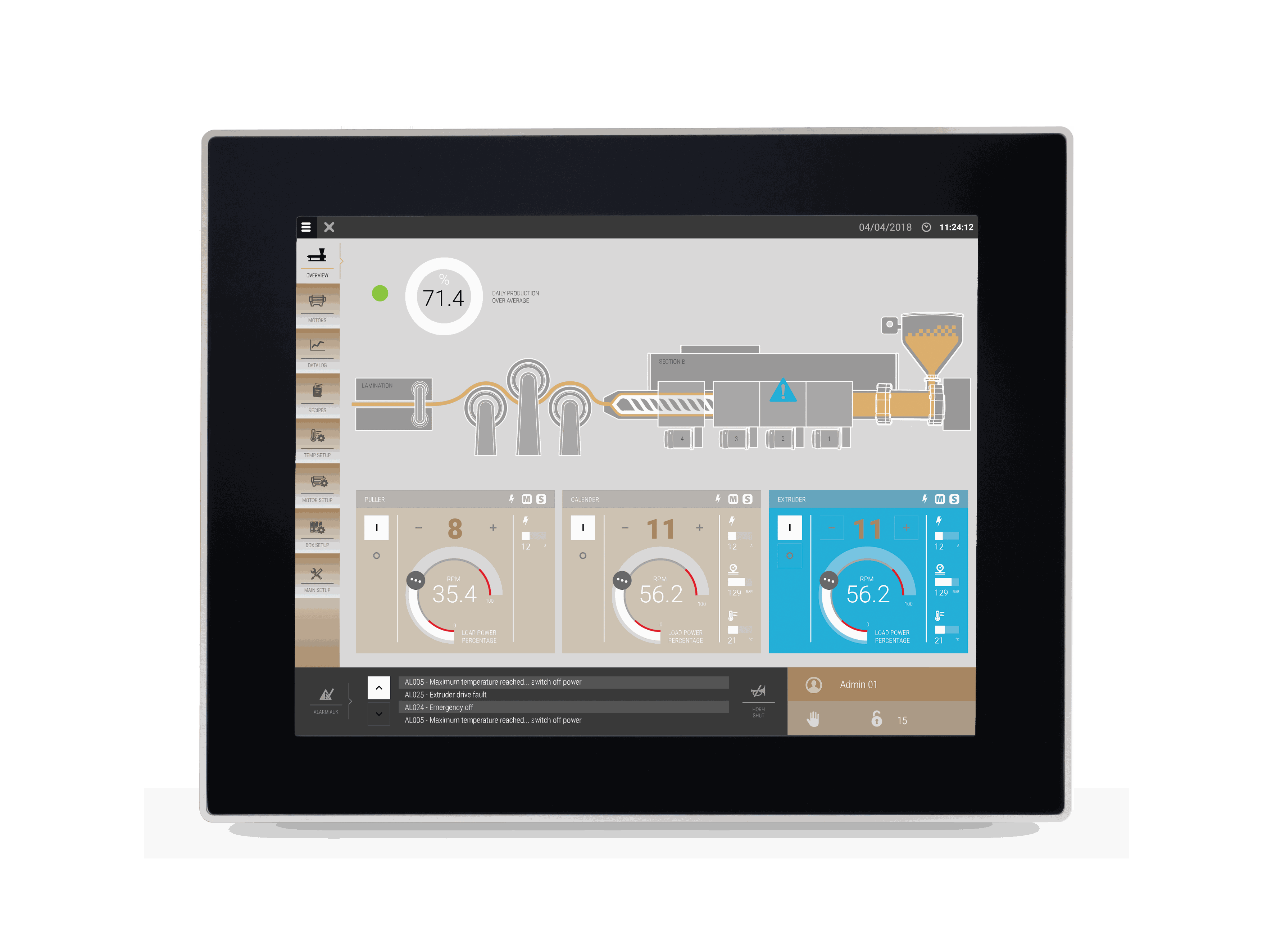

eTOP515
